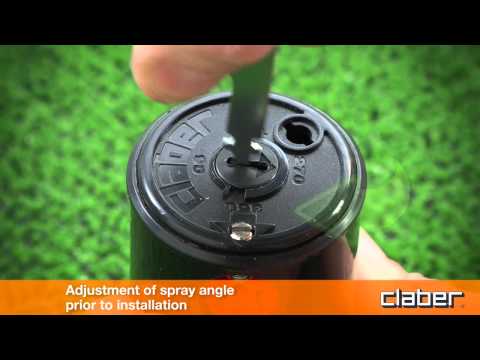

The Claber Large-Jet Pop Up Sprinkler is a reliable, versatile and easy to install pop-up sprinkler designed for large-sized gardens. With a working range that can be adjusted from 40° to 360° and with the use of interchangeable nozzles, this pop-up sprinkler can be set to cover a distance of 8.5m to 12m. The Medium-Jet Pop Up Sprinkler can be set before installation and after installation in a static position, or during operation. A special mechanism avoids damage to the gears during regulation. For more details for operation at different running pressure, please download the PDF user guide.
Product Details:
- Ideal for large-sized gardens.
- Adjustable water flow with 8 interchangeable nozzles.
- Maximum jet width: 12m radius.
- An adjustable arc between 40-360°.
- 3/4" female BSP threaded inlet (bottom).
- Simple, hassle-free installation.
- Heavy-duty construction for reliability.
Performance @ 1 BAR Pressure
Nozzle Size
|
Litres Per Min
|
Radius (m) |
| 0.5 |
1.5 l/min |
8.5 metres |
| 0.75 |
2.2 l/min |
9.6 metres |
| 1 |
3.5 l/min |
9.0 metres |
2
|
7.9 l/min |
11.4 metres |
| 2.5 |
8.4 l/min |
10.2 metres |
| 3 |
11.4 l/min |
10.4 metres |
| 4 |
13.6 l/min |
12.1 metres |
| 6 |
19.8 l/min |
13.3 metres |
| 8 |
25.8 l/min |
11.8 metres |
Performance @ 2 BAR Pressure
Nozzle Size
|
Litres Per Min
|
Radius (m) |
| 0.5 |
1.7 l/min |
9.1 metres |
| 0.75 |
2.6 l/min |
9.8 metres |
| 1 |
4.2 l/min |
9.1 metres |
2
|
8.7 l/min |
11.6 metres |
| 2.5 |
9.5 l/min |
10.7 metres |
| 3 |
12.9 l/min |
10.7 metres |
| 4 |
15.5 l/min |
12.8 metres |
| 6 |
22.0 l/min |
14.0 metres |
| 8 |
28.4 l/min |
12.8 metres |
Performance @ 3 BAR Pressure
Nozzle Size
|
Litres Per Min
|
Radius (m) |
| 0.5 |
1.9 l/min |
8.8 metres |
| 0.75 |
3.0 l/min |
9.8 metres |
| 1 |
4.9 l/min |
9.8 metres |
2
|
9.5 l/min |
11.6 metres |
| 2.5 |
10.6 l/min |
11.0 metres |
| 3 |
14.4 l/min |
11.0 metres |
| 4 |
17.4 l/min |
13.4 metres |
| 6 |
24.2 l/min |
14.6 metres |
| 8 |
31.0 l/min |
13.7 metres |
