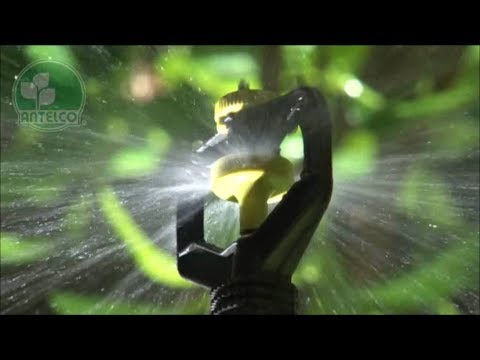

The Inverted Rotor Max Midi Sprinkler is a high-flow “spinner” sprinkler that spreads water in a full-circle pattern over a large area. Use overhead in greenhouses and nursery watering applications. Up to 13 metres diameter can be achieved using this sprinkler.
The 1/2" Rotor Max Midi Sprinkler can be used with accessories and fittings with a 1/2" BSPF thread. Made from high-quality UV stable material for longevity.
Product Details:
- Robust and reliable design for longevity.
- The inverted model has a 0° flat trajectory.
- Dual outlet spinner enhances performance.
- Easily taken apart for servicing.
- Red Nozzle: Max Radius 6.5 metres; Max Flow 500 litres per hour.
- Excellent for landscaped areas, nurseries and horticultural applications.
|
Pressure
|
Flow
|
Diameter*
|
Stream Height
|
|
100 kPa (1.0 bar)
|
300 lph
|
11.0 m
|
0.9 m
|
|
200 kPa (2.0 bar)
|
400 lph
|
13.0 m
|
1.2 m
|
|
250 kPa (2.5 bar)
|
460 lph
|
13.0 m
|
1.2 m
|
|
300 kPa (3.0 bar)
|
500 lph
|
13.0 m
|
1.4 m
|
*Tested 2.0 m above ground level
